page_allocator.c File Reference

Physical page allocator implementation using a bitmap. More...

#include "allocator/page_allocator.h"
#include "linker/linker_defines.h"
#include "linker/symbols.h"
#include "utils/kprintf.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

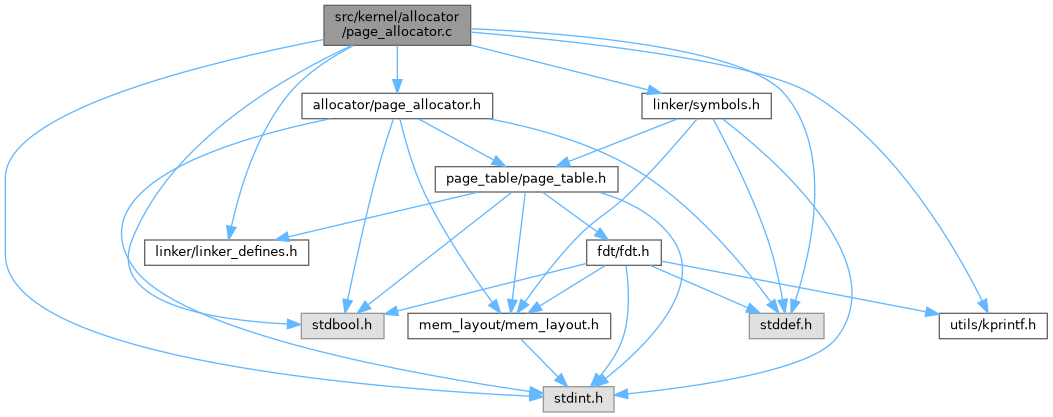

Include dependency graph for page_allocator.c:

Data Structures
struct	memory_chunk_t
	State for one managed physical-memory chunk. More...

Macros
#define	MAX_MEM_CHUNKS   10
	Maximum number of memory chunks to manage.

Typedefs
typedef struct memory_chunk_t	memory_chunk_t
	State for one managed physical-memory chunk.

Functions
static bool	check_kernel_binary_overlap (phy_addr mem_start, size_t mem_size)
	Determine whether a region overlaps the kernel image.
static bool	reserve_page_chunk (phy_addr start, size_t num_pages, memory_chunk_t *chunk)
	Mark a range of pages as reserved inside a chunk.
static bool	page_init_chunk (phy_addr mem_start, size_t mem_size, memory_chunk_t *chunk, bool check_kernel_overlap)
	Initialize one memory chunk from a physical-memory region.
static phy_addr	page_alloc_chunk (size_t num_pages, memory_chunk_t *chunk)
	Allocate a contiguous range of pages from a single chunk.
static void	page_free_chunk (phy_addr start, size_t num_pages, memory_chunk_t *chunk)
	Mark a previously allocated range of pages as free.
static void	page_dump_status_chunk (memory_chunk_t *chunk)
	Dump the allocation state for one chunk.
static memory_chunk_t *	find_chunk_for_address (phy_addr addr)
	Find the chunk that contains a given physical address.
static memory_chunk_t *	find_chunk_with_free_pages (size_t num_pages)
	Find a chunk with a contiguous free range of the requested size.
bool	page_allocator_add_region (phy_addr mem_start, size_t mem_size, bool check_kernel_overlap)
	Registers a new physical memory region with the allocator.
bool	page_allocator_remove_region (phy_addr mem_start)
	Removes a previously registered memory region.
void	fixup_page_allocator (void)
	Rewrites allocator bitmap pointers after the switch to high virtual addresses.
bool	reserve_page (phy_addr start, size_t num_pages)
	Reserves a specific number of contiguous pages.
phy_addr	page_alloc (size_t num_pages)
	Allocates a contiguous block of physical pages.
void	page_free (phy_addr start, size_t num_pages)
	Frees a previously allocated block of physical pages.
void	page_dump_status (void)
	Scans the bitmap and prints the status of all memory regions.

Variables
static memory_chunk_t	mem_chunks [MAX_MEM_CHUNKS]
	Array of memory chunks managed by the allocator.

Detailed Description

Physical page allocator implementation using a bitmap.

This module implements a simple physical page allocator backed by a linker-reserved bitmap region. It provides initialization, reservation, allocation, freeing and status dump helpers used by the kernel early memory management.

Author

Abhin Parekadan Jose

Date

2026-05-16

Function Documentation

check_kernel_binary_overlap()

static bool check_kernel_binary_overlap ( phy_addr  mem_start, size_t  mem_size  )

static

Determine whether a region overlaps the kernel image.

Parameters

mem_start	Physical base address of the region to inspect.
mem_size	Size of the region in bytes.

Returns

true when the region overlaps the linked kernel image, false otherwise.

find_chunk_for_address()

static memory_chunk_t * find_chunk_for_address ( phy_addr  addr )

static

Find the chunk that contains a given physical address.

Parameters

addr	Physical address to locate.

Returns

Pointer to the owning chunk, or NULL if none matches.

find_chunk_with_free_pages()

static memory_chunk_t * find_chunk_with_free_pages ( size_t  num_pages )

static

Find a chunk with a contiguous free range of the requested size.

Parameters

num_pages

Minimum contiguous free page count required.

Returns

Pointer to a suitable chunk, or NULL if none was found.

page_alloc()

phy_addr page_alloc

(

size_t

num_pages

)

Allocates a contiguous block of physical pages.

Searches for a free span of memory large enough to hold num_pages.

Parameters

num_pages

The number of contiguous 4 KiB pages requested.

Returns

phy_addr start address of the allocated block, or PHYS_ADDR_NULL if insufficient contiguous memory exists.

page_alloc_chunk()

static phy_addr page_alloc_chunk ( size_t  num_pages, memory_chunk_t *  chunk  )

static

Allocate a contiguous range of pages from a single chunk.

Parameters

num_pages	Number of contiguous pages to allocate.
chunk	Chunk to search for free pages.

Returns

The physical base address of the allocation, or PHYS_ADDR_NULL if none was found.

page_allocator_add_region()

bool page_allocator_add_region	(	phy_addr	mem_start,
		size_t	mem_size,
		bool	check_kernel_overlap
	)

Registers a new physical memory region with the allocator.

Initializes a new memory chunk for the range starting at mem_start and spanning mem_size bytes. If check_kernel_overlap is true, the region is rejected when it overlaps the kernel image.

Parameters

mem_start	The physical address of the beginning of the region.
mem_size	Total size of the region, in bytes.
check_kernel_overlap	Whether to reject regions that overlap with the kernel image.

Returns

true if the region was added successfully, false otherwise.

page_allocator_remove_region()

bool page_allocator_remove_region

(

phy_addr

mem_start

)

Removes a previously registered memory region.

Marks the region that starts at mem_start as no longer managed by the allocator.

Parameters

mem_start

The physical base address of the region to remove.

Returns

true if the region was found and removed, false otherwise.

page_dump_status()

void page_dump_status

(

void

)

Scans the bitmap and prints the status of all memory regions.

Iterates through the managed page pool and groups contiguous pages with the same status (FREE or USED) into blocks for concise UART output.

page_dump_status_chunk()

static void page_dump_status_chunk ( memory_chunk_t *  chunk )

static

Dump the allocation state for one chunk.

Parameters

chunk

Chunk whose page state should be printed.

page_free()

void page_free	(	phy_addr	start,
		size_t	num_pages
	)

Frees a previously allocated block of physical pages.

Marks the specified range of pages as available for future allocations.

Parameters

start	The physical address of the first page to free.
num_pages	The number of contiguous pages to release.

page_free_chunk()

static void page_free_chunk ( phy_addr  start, size_t  num_pages, memory_chunk_t *  chunk  )

static

Mark a previously allocated range of pages as free.

Parameters

start	Physical base address of the range to free.
num_pages	Number of contiguous pages to free.
chunk	Chunk that owns the range.

page_init_chunk()

static bool page_init_chunk ( phy_addr  mem_start, size_t  mem_size, memory_chunk_t *  chunk, bool  check_kernel_overlap  )

static

Initialize one memory chunk from a physical-memory region.

Parameters

mem_start	Physical base address of the region.
mem_size	Size of the region in bytes.
chunk	Chunk state to populate.
check_kernel_overlap	Whether to reject regions overlapping the kernel image.

Returns

true when the chunk was initialized successfully, false otherwise.

reserve_page()

bool reserve_page	(	phy_addr	start,
		size_t	num_pages
	)

Reserves a specific number of contiguous pages.

Marks the specified range of pages as reserved.

Parameters

start	The physical address of the first page to reserve.
num_pages	The number of contiguous pages to reserve.

Returns

bool True if the pages were successfully reserved, false otherwise.

reserve_page_chunk()

static bool reserve_page_chunk ( phy_addr  start, size_t  num_pages, memory_chunk_t *  chunk  )

static

Mark a range of pages as reserved inside a chunk.

Parameters

start	Physical base address of the range to reserve.
num_pages	Number of contiguous pages to reserve.
chunk	Destination chunk that owns the range.

Returns

true when the reservation succeeded, false otherwise.
