Kernelite is a minimalist, monolithic educational operating system kernel built from scratch. The project aims to recreate core components of the Linux architecture to explore the fundamentals of operating system design and hardware-software interaction. Much of this codebase would be reused and restructured to serve as a baseline for a future microkernel-based hypervisor (which will heavily focus on highly optimized IPC design), though no guarantees.

🎯 Project Goals

Multi-Arch Support: Initially targeting aarch64 (ARM64), with planned ports for x86_64 and legacy 32-bit architectures.
Linux-Inspired: Implementing core Unix-like subsystems including memory management, scheduling, and interrupt handling.
Educational Clarity: Maintaining a clean, documented codebase that prioritizes readability over extreme optimization.

📂 Project Structure

docs/: Technical specifications and Doxygen configuration.
src/boot/: Kernel entry point — EL setup and initial CPU handoff from the bootloader.
src/kernel/: Core kernel subsystems.
- allocator/: Physical page allocator and the kernel heap allocator (kmalloc/kfree) layered on top of it.
- drivers/: Hardware drivers.
  - PL011 UART
  - GICv3 interrupt controller
  - ARM generic timer
- icu/: Interrupt controller unit abstraction — dispatches to the matching driver (currently GICv3) based on the FDT's interrupt-controller node.
- error/: Panic and error string handling.
- exception_handling/: AArch64 exception vector table and fault/IRQ handlers (ESR_EL1 decoding, ICU dispatch).
- exit/: Kernel exit/halt path.
- fdt/: Flattened Device Tree parser wrapper.
- mem_layout/: Kernel base VA and VA/PA translation helpers.
- mmu/: MMU setup — MAIR, TCR, SCTLR_EL1, enable_mmu().
- page_table/: AArch64 page table descriptor construction and mapping.
- timer/: System timer abstraction — dispatches to the matching driver (currently the ARM generic timer) based on the FDT's compatible string.
- utils/: kprintf, string utilities.
- main.c: Kernel main() entry.
src/include/: Public headers mirroring the src/kernel/ layout, plus the linker script (linker/linker.lds).
tests/: In-kernel unit tests (page table mapping, linker symbol layout, string utilities, the page and heap allocators, memory layout, and FDT parsing) plus GIC and timer integration tests, run on QEMU when built with make TEST=1.
tools/register_decoder/: Standalone utility for decoding AArch64 system register values (SCTLR_EL1).

🛠 Building & Running

This project requires a cross-compiler (e.g., aarch64-none-elf-gcc) to ensure the kernel is built correctly for the target architecture regardless of your host machine.

Git Submodules

This repository depends on external sources under external/dtc, which is tracked as a git submodule. When cloning this repository, initialize submodules before building:

git clone --recurse-submodules https://github.com/Abhinkop/kernelite.git
cd kernelite
make all

If you already cloned without submodules, run:

git submodule update --init --recursive

or

make submodules

🧑‍💻 Development Container

This repository includes a VS Code Dev Container configuration under .devcontainer/.

The container is based on mcr.microsoft.com/devcontainers/base:noble and installs:

clang, clang-format, clang-tidy, clangd
doxygen
lld, llvm, llvm-dev, llvm-runtime
gcc-aarch64-linux-gnu, binutils-aarch64-linux-gnu
qemu-system-arm, qemu-efi-aarch64, qemu-utils
gdb-multiarch
make, git, device-tree-compiler, bison, flex, bc, pkg-config

It also installs the ARM GNU toolchain into /opt/arm-toolchain and adds it to the PATH, so aarch64-none-elf-gcc is available inside the container.

The Dev Container config also enables useful VS Code extensions for this project, including:

ms-vscode.cpptools
llvm-vs-code-extensions.vscode-clangd
ms-vscode.makefile-tools
florent-revest.addr2line
xaver.clang-format
plorefice.devicetree
13xforever.language-x86-64-assembly
MKornelsen.vscode-arm64
eamodio.gitlens

A shared shell history volume is mounted at /commandhistory so command history persists across Dev Container sessions.

Build System

The project is designed to be built using: Make

Make Targets

Below are the main make targets supported by this repository:

make all: Build the kernel image, the tools/register_decoder utility, the Doxygen docs, and run clang-tidy.
make run: Build the kernel and launch it under QEMU with semihosting enabled.
make run-as-gdb-server: Build the kernel and launch it under QEMU, paused with a GDB server listening on :1234.
make kill-gdb-server: Kill the QEMU instance started by make run-as-gdb-server.
make docs: Generate Doxygen documentation into build/docs/html.
make clean-docs: Remove generated Doxygen documentation files.
make clean: Clean the build output directory and remove generated binaries.
make format: Run clang-format on all C source and header files.
make clang-tidy: Run clang-tidy in analysis mode on C source files.
make clang-tidy-fix: Run clang-tidy with automatic fixes enabled.
make submodules: Initialize or update git submodules recursively.
make tools/register_decoder: Build the register decoder utility located in tools/register_decoder/.

Emulation

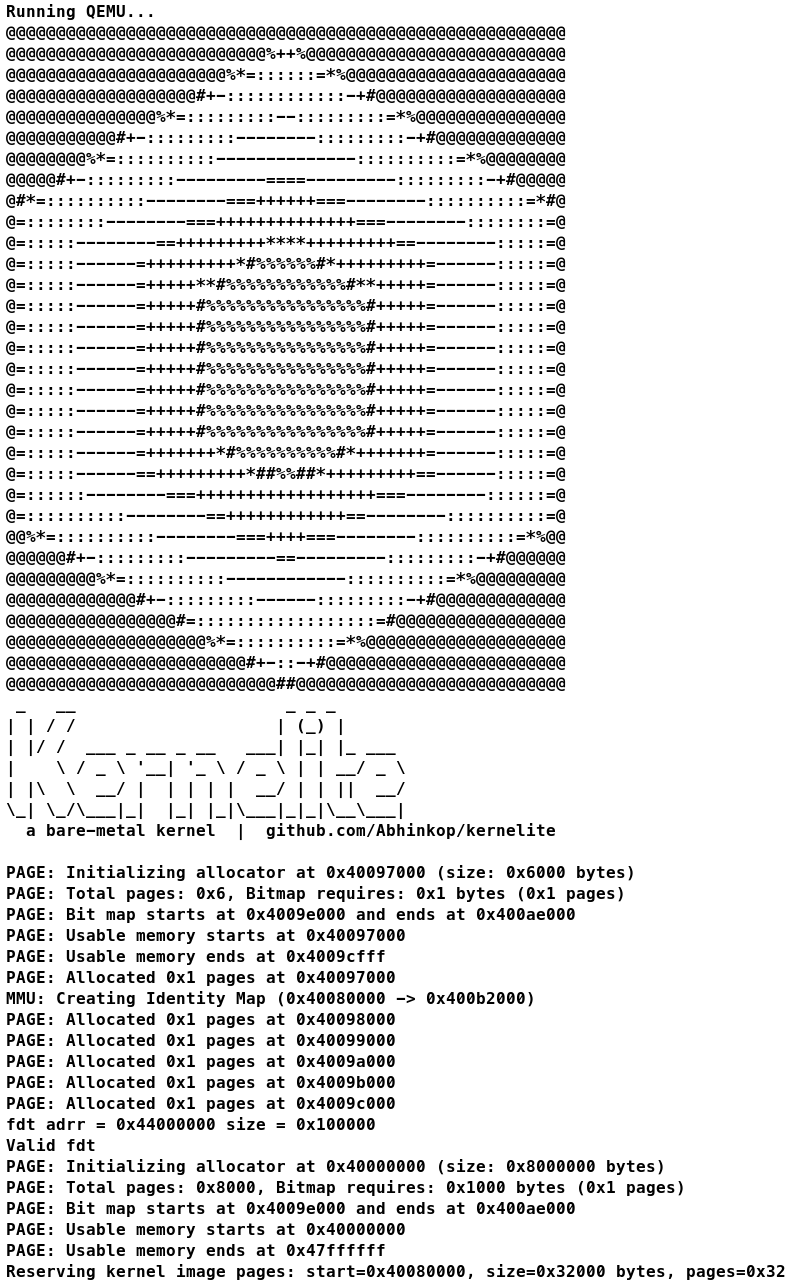

To run Kernelite on aarch64 using QEMU:

make all
qemu-system-aarch64 -machine virt,gic-version=3 \
-cpu cortex-a57 -nographic -kernel build/images/Image -no-reboot \
-semihosting

Or simply run make run, which builds the kernel and launches it with the same QEMU invocation.

Debugging

To debug the kernel under GDB:

make clean && make run-as-gdb-server DEBUG=1

This starts QEMU paused, with a GDB server listening on :1234. Attach to it with gdb-multiarch, then run make kill-gdb-server once finished to stop the QEMU instance. make doesn't track build flags, only file timestamps, so the clean is required — otherwise a binary already built without DEBUG=1 (stripped, no debug symbols) will be reused as-is.
