page_table.c File Reference

Page table support implementation for kernel virtual memory. More...

#include "page_table/page_table.h"
#include "allocator/page_allocator.h"
#include "fdt/fdt.h"
#include "linker/linker_defines.h"
#include "linker/symbols.h"
#include "mem_layout/mem_layout.h"
#include "utils/kprintf.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

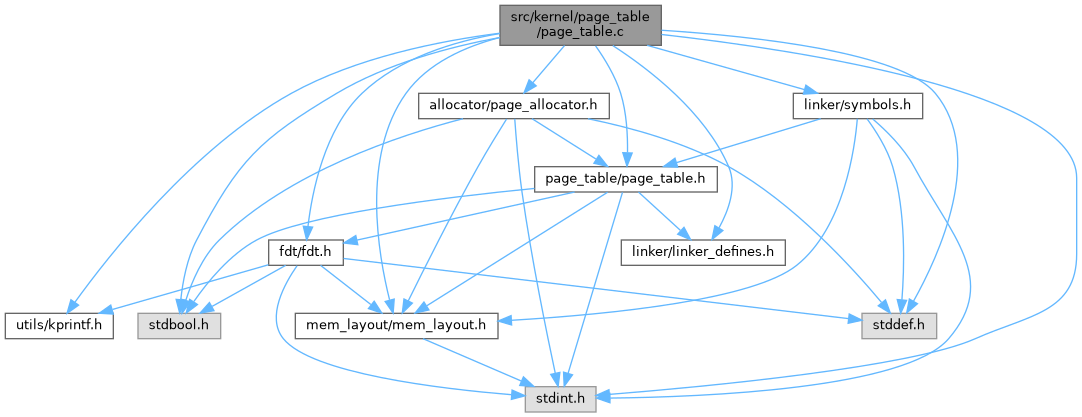

Include dependency graph for page_table.c:

Macros
#define	PAGE_SHIFT   12U
#define	IDX_MASK   0x1FFUL
#define	PA_47_12_MASK   0xFFFFFFFFFULL
#define	PA_49_48_SHIFT   48U
#define	PA_49_48_MASK   0x3ULL
#define	PA_51_50_SHIFT   50U
#define	PA_51_50_MASK   0x3ULL

Enumerations
enum	aptable_values { APTABLE_EL0_NO_RESTRICTION_EL1_NO_RESTRICTION = 0b00 , APTABLE_EL0_NO_ACCESS_EL1_NO_RESTRICTION = 0b01 , APTABLE_EL0_NO_WRITE_EL1_NO_WRITE = 0b10 , APTABLE_EL0_NO_ACCESS_EL1_NO_WRITE = 0b11 }
	Access Permission Table bits (APTable[1:0]) for Stage 1 Table Descriptors. More...
enum	ap_values { AP_PRIV_RW = 0b00 , AP_PRIV_UNPRIV_RW = 0b01 , AP_PRIV_RO = 0b10 , AP_PRIV_UNPRIV_RO = 0b11 }
	AP[2:1] data access permission encodings for Stage 1 leaf descriptors. More...
enum	sh_values { SH_NON_SHAREABLE = 0b00 , SH_RESERVED = 0b01 , SH_OUTER_SHAREABLE = 0b10 , SH_INNER_SHAREABLE = 0b11 }
	SH[1:0] shareability domain encodings for Stage 1 leaf descriptors. More...

Functions
static void	set_page_table_entry_address (table_desc_t *entry, const phy_addr phys_addr)
	Set the physical Next-Level Table Address (NLTA) in a table descriptor.
static void	set_page_desc_entry_address (page_desc_t *entry, const phy_addr phys_addr)
	Set the physical Output Address (OA) in a block or page data descriptor.
static phy_addr	get_page_table_entry_address (const table_desc_t *entry)
	Get the physical address from a page table entry.
static bool	check_table_permissions (const table_desc_t *entry, const page_permissions_t perms)
	Checks if a table descriptor's hierarchical permissions allow the requested page permissions.
static void	print_indent (int level)
	Helper to generate visual indentation based on the current tree depth.
static void	page_table_init (page_table_t *table)
	Initialize a page table.
static void	set_next_level_table (page_table_entry_t *entry, phy_addr next_table_addr)
	Set the next level table address in a page table entry union.
static bool	allocate_new_table (table_desc_t *entry)
	Allocate and zero-initialize a new page table, then install it as the next level table in the entry.
static page_table_t *	get_next_level_table (table_desc_t *entry, const page_permissions_t perms)
	Get the next level table from a page table entry, allocating it on demand if the entry is not yet valid.
static bool	map_mem_region (memory_region_t *region, page_table_t *root_table)
	Maps one physical region into the higher-half kernel map.
void	print_page_descriptor (const page_desc_t desc)
	Pretty-prints the contents of a Stage 1 Block/Page descriptor.
void	print_table_descriptor (const table_desc_t desc)
	Pretty-prints the contents of a Stage 1 Table descriptor (Levels 0, 1, or 2).
void	print_page_table_tree (const page_table_entry_t *table_base, int current_level, uint64_t base_va)
	Recursively prints the structure of the page table tree starting from a given base table.
bool	map_page (page_table_t *root, const virt_addr v_addr, const phy_addr phy_addr, const page_permissions_t perms, const mem_type_t mem_type)
	Map a virtual address to a physical address in the page table.
void	dump_memory_map (page_table_t *root)
	Dump the memory map for debugging.
bool	setup_kernel_id_map (phy_addr serial_device_addr_base)
	Set up the initial identity-mapped region for the kernel.
bool	setup_kernel_map (memory_map_t *const mmap)
	Set up the kernel's higher-half virtual-memory map.

Detailed Description

Page table support implementation for kernel virtual memory.

This module contains the kernel page table implementation used to manage virtual memory mappings and page table creation routines.

Author

Abhin Parekadan Jose

Date

2026-05-17

Macro Definition Documentation

IDX_MASK

#define IDX_MASK   0x1FFUL

Index mask for page table entries

PA_47_12_MASK

#define PA_47_12_MASK   0xFFFFFFFFFULL

36-bit field: PA[47:12]

PA_49_48_MASK

#define PA_49_48_MASK   0x3ULL

2-bit field: PA[49:48]

PA_49_48_SHIFT

#define PA_49_48_SHIFT   48U

Shift for PA[49:48]

PA_51_50_MASK

#define PA_51_50_MASK   0x3ULL

2-bit field: PA[51:50]

PA_51_50_SHIFT

#define PA_51_50_SHIFT   50U

Shift for PA[51:50]

PAGE_SHIFT

#define PAGE_SHIFT   12U

Shift for page offset

Enumeration Type Documentation

ap_values

enum ap_values

AP[2:1] data access permission encodings for Stage 1 leaf descriptors.

Encodes the direct permissions written into bits [7:6] of a block or page descriptor. For a stage 1 translation supporting two Exception levels (Table D8-63, ARMv8/ARMv9 ARM):

+-------—+----------------------------------------—+ | AP[2:1] | Permissions | +-------—+----------------------------------------—+ | 0b00 | PrivRead, PrivWrite | | 0b01 | PrivRead, PrivWrite, UnprivRead, UnprivWrite | | 0b10 | PrivRead | | 0b11 | PrivRead, UnprivRead | +-------—+----------------------------------------—+

"Priv" == EL1 (kernel), "Unpriv" == EL0 (user).

Enumerator
AP_PRIV_RW	[0b00] EL1 read/write. EL0 no access.
AP_PRIV_UNPRIV_RW	[0b01] EL1 and EL0 read/write.
AP_PRIV_RO	[0b10] EL1 read-only. EL0 no access.
AP_PRIV_UNPRIV_RO	[0b11] EL1 and EL0 read-only.

aptable_values

enum aptable_values

Access Permission Table bits (APTable[1:0]) for Stage 1 Table Descriptors.

This hierarchical control restricts the maximum permissions allowed for all downstream block or page descriptors reachable through this table entry.

Note

These controls can only restrict permissions down the chain; they cannot grant more privileges than what a leaf L3 page descriptor specifies.

+---—+-------------------------—+-------------------------—+ |Value | EL0 (Unprivileged) | EL1 (Privileged) | +---—+-------------------------—+-------------------------—+ | 0b00 | No restriction | No restriction | | 0b01 | No Access | No restriction | | 0b10 | Read-Only (No write) | Read-Only (No write) | | 0b11 | No Access | Read-Only (No write) | +---—+-------------------------—+-------------------------—+

Note

APTable[0] is treated as 0 when virtualization is active and HCR_EL2.{NV,NV1} == {1,1}.

Enumerator
APTABLE_EL0_NO_RESTRICTION_EL1_NO_RESTRICTION	[0b00] No downstream permission modifications applied.
APTABLE_EL0_NO_ACCESS_EL1_NO_RESTRICTION	[0b01] APTable[0]=1: strip EL0 access entirely. EL1 unaffected.
APTABLE_EL0_NO_WRITE_EL1_NO_WRITE	[0b10] APTable[1]=1: force read-only for all ELs.
APTABLE_EL0_NO_ACCESS_EL1_NO_WRITE	[0b11] Highly restricted. EL0: No Access, EL1: Forced Read-Only.

sh_values

enum sh_values

SH[1:0] shareability domain encodings for Stage 1 leaf descriptors.

Written into bits [9:8] of a block or page descriptor. Controls which observers share the coherency domain for Normal memory accesses. For Device memory the shareability is always Outer Shareable regardless of this field.

+-----—+---------------—+ | SH[1:0]| Domain | +-----—+---------------—+ | 0b00 | Non-shareable | | 0b01 | RESERVED | | 0b10 | Outer Shareable | | 0b11 | Inner Shareable | +-----—+---------------—+

Enumerator
SH_NON_SHAREABLE	[0b00] Non-shareable — no coherency requirement with other observers.
SH_RESERVED	[0b01] RESERVED — must not be used.
SH_OUTER_SHAREABLE	[0b10] Outer Shareable — coherent with the outer shareability domain (typically all CPUs + GPU + DMA-capable devices).
SH_INNER_SHAREABLE	[0b11] Inner Shareable — coherent within the inner shareability domain (typically all CPUs in the same cluster).

Function Documentation

allocate_new_table()

static bool allocate_new_table ( table_desc_t *  entry )

static

Allocate and zero-initialize a new page table, then install it as the next level table in the entry.

Parameters

entry

Pointer to the page table entry to modify.

Returns

true if successful, false otherwise.

check_table_permissions()

static bool check_table_permissions ( const table_desc_t *  entry, const page_permissions_t  perms  )

static

Checks if a table descriptor's hierarchical permissions allow the requested page permissions.

Parameters

entry	Pointer to the target table descriptor structure.
perms	The incoming software page permissions to validate against the table restrictions.

Returns

true if the table permits the mapping rules; false if the table actively restricts them.

dump_memory_map()

void dump_memory_map

(

page_table_t *

root

)

Dump the memory map for debugging.

Parameters

root	Pointer to the root page table to dump.

get_next_level_table()

static page_table_t * get_next_level_table ( table_desc_t *  entry, const page_permissions_t  perms  )

static

Get the next level table from a page table entry, allocating it on demand if the entry is not yet valid.

Parameters

entry	Pointer to the page table entry.
perms	The requested page permissions for the downstream mapping.

Returns

Pointer to the next level page table, or NULL if entry was NULL, allocation of a new table failed, or the existing entry's permissions don't permit the requested page profile.

get_page_table_entry_address()

static phy_addr get_page_table_entry_address ( const table_desc_t *  entry )

inlinestatic

Get the physical address from a page table entry.

Parameters

entry

Pointer to the page table entry.

Returns

The physical address.

map_mem_region()

static bool map_mem_region ( memory_region_t *  region, page_table_t *  root_table  )

static

Maps one physical region into the higher-half kernel map.

Maps every page of region to its higher-half virtual address (physical + KERNEL_BASE). Pages that fall inside the kernel image [image_start, image_end) are mapped RWX; all other pages are mapped RW.

Parameters

region	Physical-memory region to map; its base is assumed to be page-aligned.
root_table	Root of the page table to populate.

Returns

true if every page was mapped, false on a NULL argument or a failed page mapping.

map_page()

bool map_page	(	page_table_t *	root,
		virt_addr	v_addr,
		phy_addr	phy_addr,
		page_permissions_t	perms,
		mem_type_t	mem_typ
	)

Map a virtual address to a physical address in the page table.

Walks the four-level (L0→L3) translation table rooted at root, allocating intermediate table descriptors as needed, and installs a leaf page descriptor at L3 that covers the 4 KB page containing v_addr. The descriptor's AttrIndx field is set from mem_typ, selecting the matching MAIR_EL1 slot (see mem_type_t).

Parameters

root	Pointer to the root (L0) page table. Must not be NULL.
v_addr	Virtual address to map; only bits [47:12] are significant (the 4 KB page base — lower bits are ignored).
phy_addr	Physical address of the target frame; must be 4 KB-aligned.
perms	Software permission flags (page_permissions_t) that are translated into the AP[2:1], PXN, and UXN hardware fields.
mem_typ	Memory type index (mem_type_t) written into AttrIndx[2:0] of the leaf descriptor, selecting the MAIR_EL1 attribute byte (e.g. DEVICE → 0x00 Device-nGnRnE, NORMAL → 0xFF Normal WB-RWA Cacheable).

Returns

true Mapping installed successfully.

false root was NULL, v_addr/phy_addr were not 4 KB aligned, or allocation of an intermediate table failed.

page_table_init()

static void page_table_init ( page_table_t *  table )

static

Initialize a page table.

Parameters

table

Pointer to the page table to initialize.

print_indent()

static void print_indent ( int  level )

static

Helper to generate visual indentation based on the current tree depth.

Parameters

level

The current depth level in the page table tree (0 for root).

print_page_descriptor()

void print_page_descriptor

(

const page_desc_t

desc

)

Pretty-prints the contents of a Stage 1 Block/Page descriptor.

Parameters

desc	The page descriptor structure to decode.

print_page_table_tree()

void print_page_table_tree	(	const page_table_entry_t *	table_base,
		int	current_level,
		uint64_t	base_va
	)

Recursively prints the structure of the page table tree starting from a given base table.

Parameters

table_base	Pointer to the base of the current page table level.
current_level	The current level in the page table hierarchy (0-3).
base_va	The starting virtual address range covered by this table.

print_table_descriptor()

void print_table_descriptor

(

const table_desc_t

desc

)

Pretty-prints the contents of a Stage 1 Table descriptor (Levels 0, 1, or 2).

Parameters

desc	The table descriptor structure to decode.

set_next_level_table()

static void set_next_level_table ( page_table_entry_t *  entry, phy_addr  next_table_addr  )

static

Set the next level table address in a page table entry union.

Parameters

entry	Pointer to the root page table entry union to modify.
next_table_addr	Physical address of the next level page table (must be 4KB page aligned).

set_page_desc_entry_address()

static void set_page_desc_entry_address ( page_desc_t *  entry, const phy_addr  phys_addr  )

inlinestatic

Set the physical Output Address (OA) in a block or page data descriptor.

Parameters

entry	Pointer to the page/block data descriptor structure.
phys_addr	The target 4KB-aligned physical address to assign.

set_page_table_entry_address()

static void set_page_table_entry_address ( table_desc_t *  entry, const phy_addr  phys_addr  )

inlinestatic

Set the physical Next-Level Table Address (NLTA) in a table descriptor.

Parameters

entry	Pointer to the table descriptor structure.
phys_addr	The target 4KB-aligned physical address to assign.

setup_kernel_id_map()

bool setup_kernel_id_map

(

phy_addr

serial_device_addr_base

)

Set up the initial identity-mapped region for the kernel.

Creates the early page-table mappings needed during low-virtual-address boot, including the serial-device mapping used by the early console.

Parameters

serial_device_addr_base

Physical base address of the serial device to map during early boot.

Returns

true on success, false on failure such as an allocation error or invalid mapping setup.

setup_kernel_map()

bool setup_kernel_map

(

memory_map_t *

mmap

)

Set up the kernel's higher-half virtual-memory map.

Maps every region described by mmap into the higher half, giving pages within the kernel image RWX permissions and all other pages RW.

Parameters

mmap	Pointer to the memory map structure describing the available physical-memory regions.

Returns

true on success, false on failure such as an empty memory map, an allocation error, or an invalid mapping configuration.
